Typical performance
  • Size: 76.2*76.2*13.9mm
  • Wide Input voltage range 2:1
  • Typical Efficiency 80%
  • Switching frequency：250KHz±30KHz
  • Over current/Short circuit protection,Self-furbish
  • Input-output isolated
  • PCB mount, on-board type
  • Sine wave output
Technology parameter
Test condition: Genneral Nominal Line,Tc=25℃，Rated resistant load unless other wise specified
Input Min Nom Max Notes
Input voltage   24V
  48V
Remote ON/OFF On: REM connceted to -Vin Off: REM connected to +Vin
Output
Output accuracy ±5Vac
Line regulation Rated Load，full voltage range ±0.5%
Load regulation 20% ~ 100% of rated load ±1.0%
Output frequency 25Hz ±3Hz
Start time Typical value 2S
General Characteristic
Efficiency Nominal input,Full load 80%
Switching frequency 250KHz (Typical)
Operating temperature Natural breeze Industrial level -25℃ ~ +65℃
Storage temperature Industrial grade -40℃ ~ +105℃
Max case temperature Industrial grade +90℃
Relative humidity 10%~90%
case material Metal case
Isolation Voltage input-output 500V ≤0.5mA/1min
Isolation Voltage input-case 500V ≤0.5mA/1min
(MTBF) 2X100,000Hrs
Ordering info
  • CL
    DA
    10
    -
    24
    S
    75
    ①
    ②
    ③
    -
    ④
    ⑤
    ⑥
① Current Logic Brand
② convert type：DA(DC-AC)
③ power
- -
④ nominal input
⑤ S - single output, D - dual output
⑥ output volt
⑦

N-narrow input, W-wide input, default is wide intput
Part NO. Input range Output 1 Output 2 Output 3
V mA V mA V mA
CLDA15-24S75 24V（18~36） 75Vac 200
CLDA15-48S75 48V（36~72） 75Vac 200
CLDA20-24S75 24V（18~36） 75Vac 265
CLDA20-48S75 48V（36~72） 75Vac 265

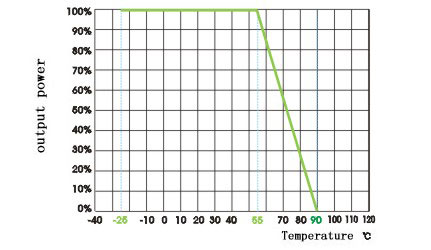

Temperature graph
Dimension
PIN 1 2 3 4 5 6
Single Output REM CASE -Vin +Vin Vout Vout
