Typical performance
  • Size: 62*45*22.5mm
  • Wide Input voltage range
  • Typical Efficiency 75%
  • Switching frequency：60KHz
  • Over current/Short circuit protection,Self-furbish
  • Input-output isolated
  • PCB mount, on-board type
  • Metal case
Technology parameter
Test condition: Genneral Nominal Line,Tc=25℃，Rated resistant load unless other wise specified
Input Min Nom Max Notes
Input voltage (AC) 165(200Vdc) 220 265(380Vdc) N
85(120Vdc) 220 265(380Vdc) W
Remote ON/OFF NO
Output
Output accuracy Vo1;Vo2 ±1.0%;±2.0%
Line regulation Rated Load，full voltage range Vo1;Vo2 ±0.2%;±0.5%
Load regulation 20% ~ 100% of rated load Vo1;Vo2 ±0.5%;±3.0%
Ripple and noise 20MHz, Vo≤5.0V, ≤80mVp-p; Vo≥48V, ≤180mVp-p; Other, ≤120mVp-p;
Start time Typical value ≤1S
General Characteristic
Efficiency Nominal input,Full load Vo≤5.0V,75%(Typical) Vo>5.0V，77%(Typical)
Switching frequency 60KHz (Typical)
Operating temperature Natural breeze Industrial level -25℃ ~ +65℃
Storage temperature Industrial grade -40℃ ~ +105℃
Max case temperature Industrial grade +80℃
Relative humidity 10%~90%
case material Metal case
Isolation Voltage input-output 2.5KV ≤10mA/1min
Isolation Voltage input-case 1.5KV ≤10mA/1min
(MTBF) 2X100,000Hrs
Ordering info
  • CL
    A
    3
    -
    220
    S
    12
    N
    ①
    ②
    ③
    -
    ④
    ⑤
    ⑥
    ⑦
① Current Logic Brand
② convert type：A(AC-DC)
③ power
- -
④ nominal input
⑤ S - single output, D - dual output
⑥ output volt
⑦

N-narrow input, W-wide input, default is wide intput
Part NO. Input range Output 1 Output 2 Output 3
V mA V mA V mA
CLA10-220S05 85~265VAC；120~380VDC 5V 2000mA
CLA10-220S12 85~265VAC；120~380VDC 12V 840mA
CLA10-220S24 85~265VAC；120~380VDC 24V 420mA
CLA10-220D05 85~265VAC；120~380VDC +5V 1000mA -5V 1000mA
CLA10-220D12 85~265VAC；120~380VDC +12V 420mA -12V 420mA
CLA10-220D24 85~265VAC；120~380VDC +24V 210mA -24V 210mA
CLA10-220T5-12I 85~265VAC；120~380VDC +5V 1200mA +12V 100mA -12V 100mA
CLA15-220S05 85~265VAC；120~380VDC 5V 3000mA
CLA15-220S12 85~265VAC；120~380VDC 12V 1250mA
CLA15-220S24 85~265VAC；120~380VDC 24V 625mA
CLA15-220D05 85~265VAC；120~380VDC +5V 1500 mA -15V 1500 mA
CLA15-220D12 85~265VAC；120~380VDC +12V 625mA -12V 625mA
CLA15-220D24 85~265VAC；120~380VDC +24V 310mA -24V 310mA
Temperature graph

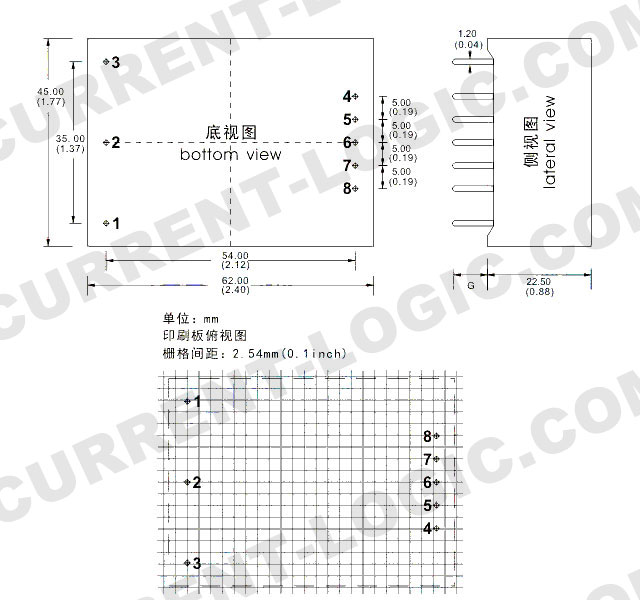

Dimension
PIN 1 2 3 4 5 6
Single Output（S） AC(N) AC(L) +Vout NP GND NP
Dual Output（D） AC(N) AC(L) +Vo1 COM -Vo2 NP
Dual Isolated（DI） AC(N) AC(L) +Vo1 GND1 GND2 +Vo2
