Typical performance
  • Size: 62*46*22mm
  • Wide Input voltage range
  • Typical Efficiency 82%
  • Switching frequency：100KHz
  • Over current/Short circuit protection,Self-furbish
  • Input-output isolated
  • PCB mount, on-board type
  • Metal case
Technology parameter
Test condition: Genneral Nominal Line,Tc=25℃，Rated resistant load unless other wise specified
Input Min Nom Max Notes
Input voltage (AC) 165(200Vdc) 220 265(380Vdc) N
85(120Vdc) 220 265(380Vdc) W
Remote ON/OFF NO
Output
Output accuracy Vo1;Vo2 ±1.0%;±2.0%
Line regulation Rated Load，full voltage range Vo1;Vo2 ±0.2%;±0.5%
Load regulation 20% ~ 100% of rated load Vo1;Vo2 ±0.5%;±3.0%
Ripple and noise 20MHz, Vo≤5.0V, ≤80mVp-p; Vo≥48V, ≤180mVp-p; Other, ≤120mVp-p;
Start time Typical value ≤1S
General Characteristic
Efficiency Nominal input,Full load Vo≤5.0V,80%(Typical) Vo>5.0V，82%(Typical)
Switching frequency 100KHz (Typical) 250KHz
Operating temperature Natural breeze Industrial level -25℃ ~ +65℃
Storage temperature Industrial grade -40℃ ~ +105℃
Max case temperature Industrial grade +80℃
Relative humidity 10%~90%
case material Metal case
Isolation Voltage input-output 2.5KV ≤10mA/1min
Isolation Voltage input-case 1.5KV ≤10mA/1min
(MTBF) 2X100,000Hrs
Ordering info
  • CL
    A
    3
    -
    220
    S
    12
    N
    ①
    ②
    ③
    -
    ④
    ⑤
    ⑥
    ⑦
① Current Logic Brand
② convert type：A(AC-DC)
③ power
- -
④ nominal input
⑤ S - single output, D - dual output
⑥ output volt
⑦

N-narrow input, W-wide input, default is wide intput
Part NO. Input range Output 1 Output 2 Output 3
V mA V mA V mA
CLA30-220S05 85~265VAC；120~380VDC 5V 6000mA
CLA30-220S12 85~265VAC；120~380VDC 12V 2500mA
CLA30-220S24 85~265VAC；120~380VDC 24V 1250mA
CLA30-220D05 85~265VAC；120~380VDC +5V 3000mA -5V 3000mA
CLA30-220D12 85~265VAC；120~380VDC +12V 1250mA -12V 1250mA
CLA30-220D24 85~265VAC；120~380VDC +24V 625mA -24V 625mA
CLA40-220S05 85~265VAC；120~380VDC 5V 8000mA
CLA40-220S12 85~265VAC；120~380VDC 12V 3300mA
CLA40-220S24 85~265VAC；120~380VDC 24V 1700mA
CLA40-220D05 85~265VAC；120~380VDC +5V 4000mA -5V 4000mA
CLA40-220D12 85~265VAC；120~380VDC +12V 1700mA -12V 1700mA
CLA40-220D24 85~265VAC；120~380VDC +24V 820mA -24V 820mA
CLA50-220S05 85~265VAC；120~380VDC 5V 10000mA
CLA50-220S12 85~265VAC；120~380VDC 12V 4200mA
CLA50-220S24 85~265VAC；120~380VDC 24V 2100mA
CLA50-220D05 85~265VAC；120~380VDC +5V 5000mA -5V 5000mA
CLA50-220D12 85~265VAC；120~380VDC +12V 2100mA -12V 2100mA
CLA50-220D24 85~265VAC；120~380VDC +24V 1050mA -24V 1050mA
Temperature graph

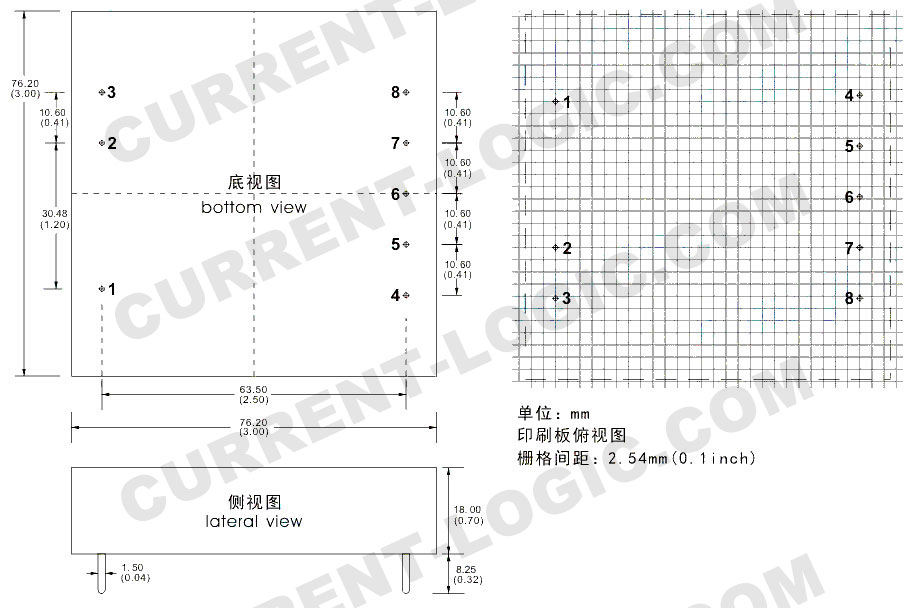

Dimension
PIN 1 2 3 4 5 6 7 8
Single Output（S） FG Vin Vin -S TRIM +S GND Vout
Dual Output（D） FG Vin Vin Vout2 NP GND NP Vout1
Dual Isolated（DI） FG Vin Vin -Vout1 +Vout1 NP -Vout2 +out2
